RUEZ - Float switch RB
For more information please contact us:
Contact us
Application

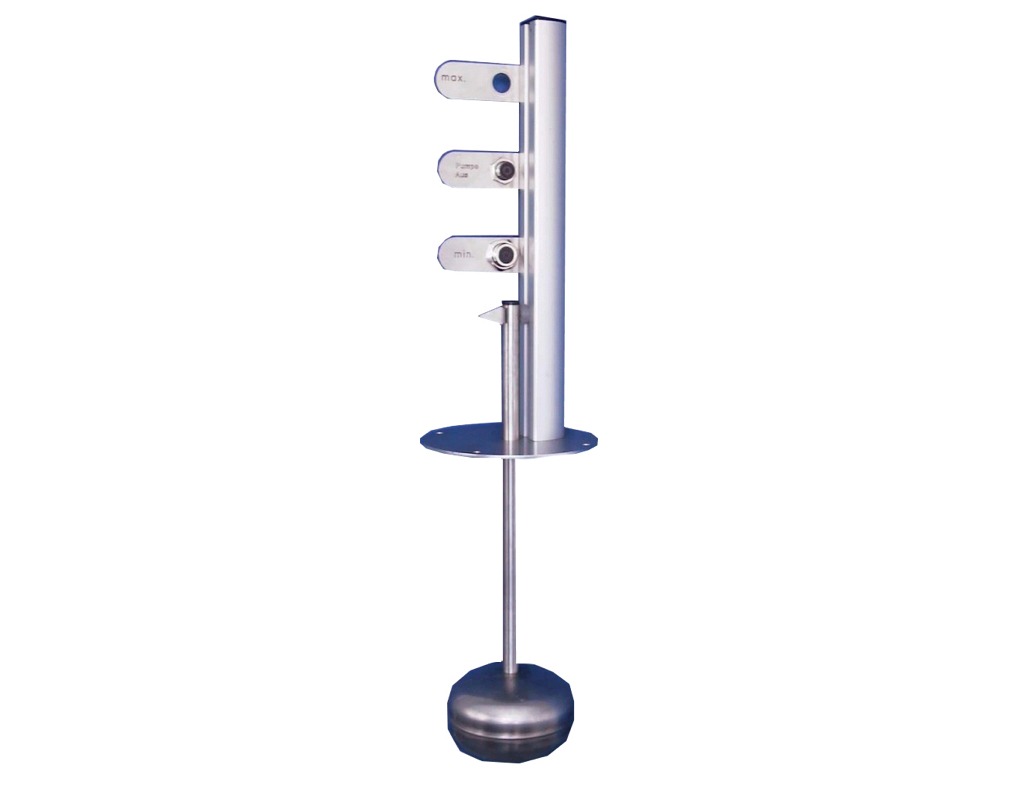

Float switch with integrated optical Fill level indicator
Optical fill level indicator (switch points can be retrofitted)
Options
Available with other proximity switches upon request!
Can be equipped with tool holder (reproducibility), enabling replacement of the proximity switch without resetting the switch points
Available with continuous output upon request.
Application areas
Quenching and cooling agents
Demineralized water
Suds
Cooling lubricant
In containers with moving liquid surfaces
Oils (min. density 0.8 g/m3; lower densities on request)
Impure liquids with aggressive solids (e.g., chips)
Medium temperature: 5° to 70° C (higher temperatures on request)
Features
Height-adjustable switch points
Max. number of switch points by request and length measurement "x"
Low-maintenance
Optical fill level indicator
Additional switch points easy to retrofit
All components contacting the medium made of high-grade steel
Unaffected by contaminants because of large float dimensions
Immersion depths over 1200 mm by request
Subject to change!
