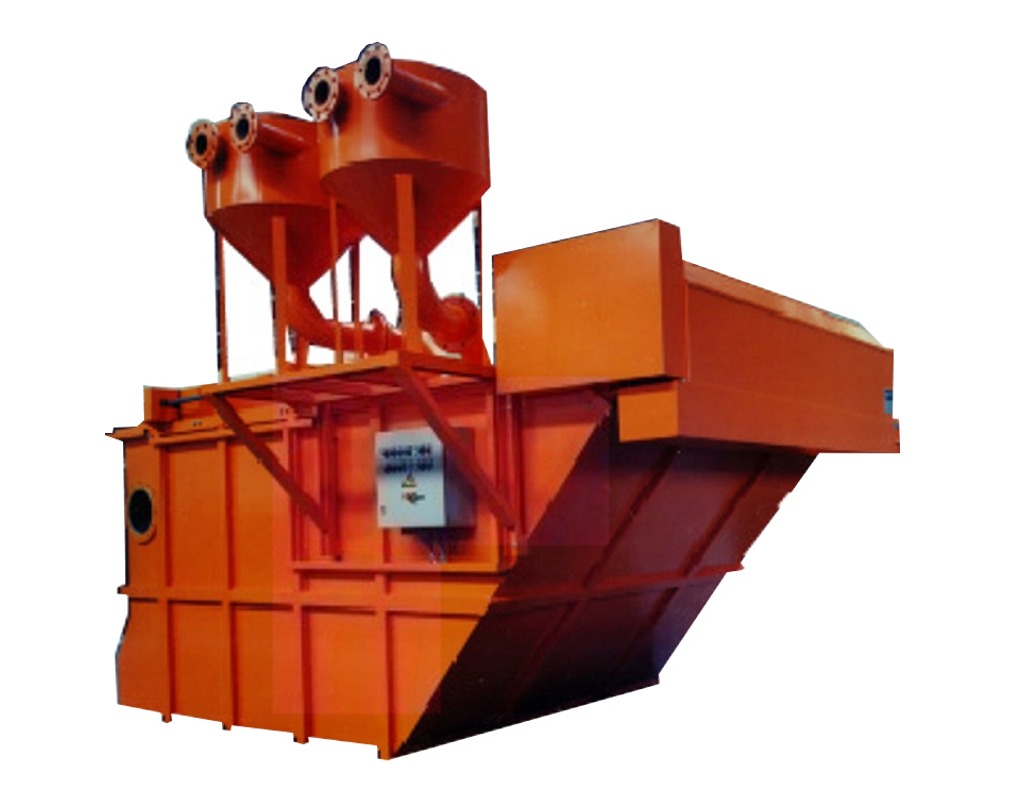

RUEZ - Lamella separator

Complete lamella separator available in high-grade steel!

For more information please contact us:

Contact us


  • Filter aid-free separation of solids from low-viscosity liquids in individual units and smaller central units
  • Separation of floating liquids (e.g. tramp oils) from liquids resembling water
  • Pre-separation for fine filter downstream or connected in the bypass

Application areas

  • Quenching and cooling agents
  • Demineralized water
  • Suds
  • Cooling lubricant
  • Low-viscosity oils with a max. viscosity of 30 mm2/s
  • Flaked suspensions
  • Low-viscosity sludge


  • Cleaning of liquids without filter aids = no hazardous waste
  • Economically achievable effective separating sizes for particles of any shape 20-30µm (in special cases up to 10µm)
  • The optimal mechanical lamella purification process is selected based on the application area
  • The installed sludge discharge scraper ensures a consistent sediment requirement and eliminates the need for costly cleaning of the container.
  • The lamella separator is not dependent on the development of filter cake
  • Lamella separators in the central unit with the associated pumps, mixing stations and units can be delivered as one complete unit in most cases. The in-house assembly costs are thereby drastically reduced.
  • To clean aggressive liquids, the complete lamella separator and be safety tank can be manufactured in high-grade steel

Optional sizes up to:
Liquid throughput of 5 to 5000 l/min Volumetric capacity up to 100 m³ available.


  • Electric control
  • Tramp oil separation utilizing the outstanding liquid abatement process
  • In order to meet today’s strict environmental regulations (e.g., § 19 German Water Resources Act (WHG), the lamella separator is available in a double-walled design for use in hazardous liquids
  • Mixing stations
  • Downstream or connect in the bypass Fine filter
  • Sludge transport and drying
  • Container


Subject to change!
